ACTUS®
HANDHELD LASER RANGEFINDER
CHARACTERISTICS
MST-LRF

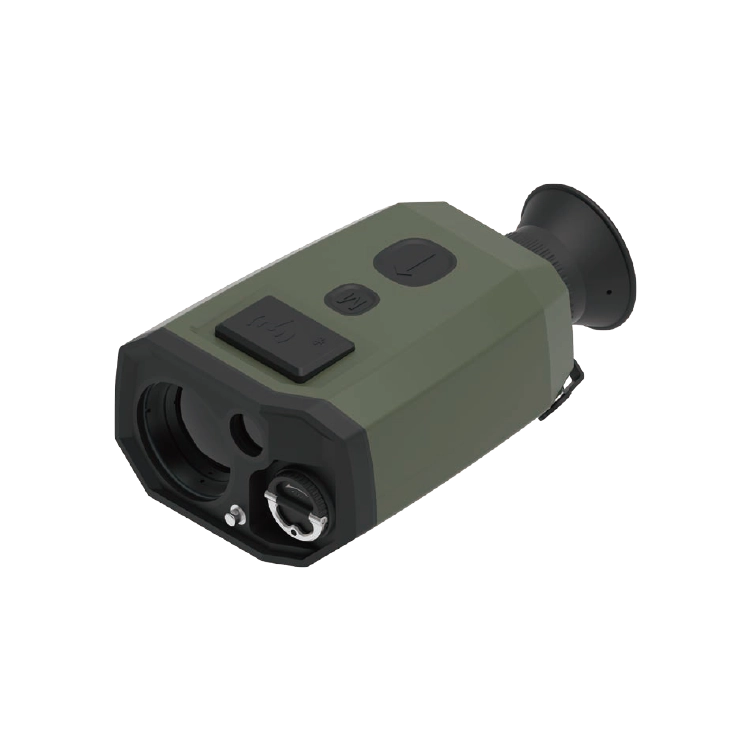

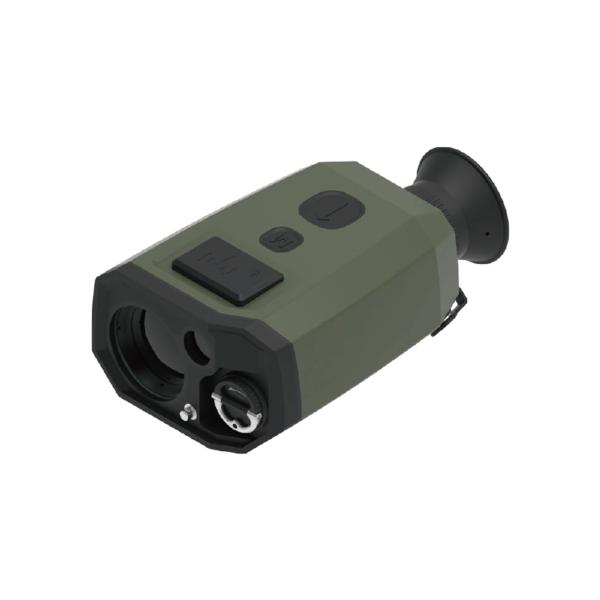

HANDHELD LASER RANGEFINDER
The MST-LRF series laser rangefinders are designed for modern tactical and reconnaissance operations.
Combining advanced rangefinding, angle, height, and position measurements, it ensures precise data acquisition
even in complex combat conditions. Integrated GPS/Beidou/GLONASS positioning, Bluetooth app control,
and ballistic calculation functions provide users with unmatched efficiency and situational awareness on the field.
SPECIFICATIONS
| Magnification | 7× |
| Field of View (°) | 6° |
| Wavelength (nm) | 1,535 nm |
| Laser Class | Class 1 (Eye Safe) |
| Max Range (m) | 6,000 / 10,000 |
| Accuracy (m) | ±1 |
| Inclination Accuracy (° RMS) | ±0.5 (within ±75°) |
| Detection Probability | ≥98% |
| Battery Life | 5,000 Measurements |
| Positioning System | GPS / Beidou / GLONASS |
| Dimensions (mm) | 141 × 81 × 53 |
| Weight (g) | 430 |
| Waterproof Rating | IP67 |
| Advanced Features | Mobile App / Ballistic Solution |
FEATURES
 Height & Horizontal Measurement |  Two Target Distances & Angles |  Ranging & Location |
 Scanning Measurement |  Single Object Measurement |  Multiple Object Measurement |
MST-LRF
HANDHELD LASER RANGEFINDER
