ACTUS®
THERMAL & NIGHT VISION FUSION CLIP-ON
CHARACTERISTICS

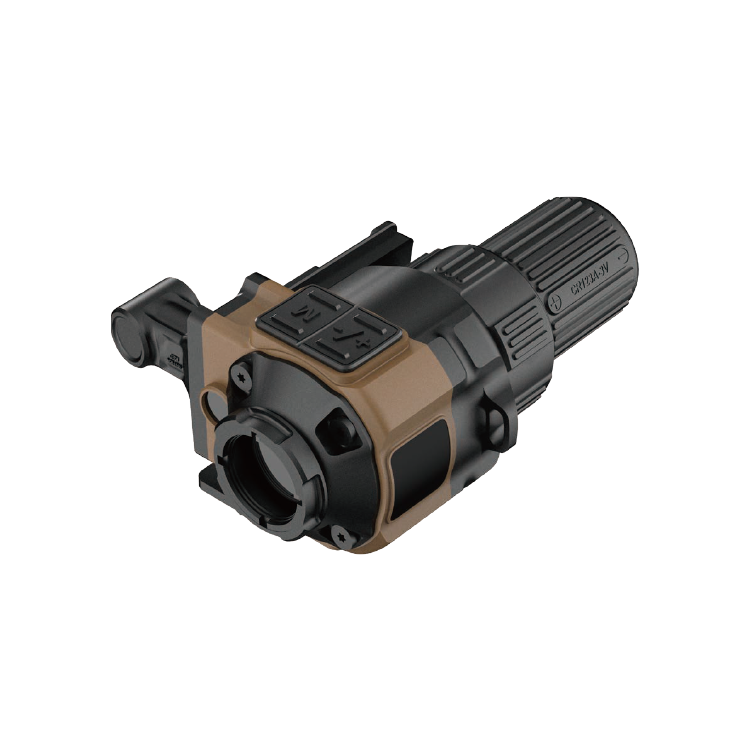

TGE-TC
THERMAL IMAGER & NIGHT VISION GOGGLE ENHANCEMENT MODULE
The TGE-TC is an advanced clip-on thermal enhancement module that rapidly upgrades conventional night vision goggles with thermal imaging capability. Its external bracket design allows quick attachment and detachment without recalibration, enabling seamless operation in the field. Featuring dual power input, Bluetooth remote control, and integrated sensors, it provides enhanced situational awareness and rapid target recognition even in complete darkness.
SPECIFICATIONS
| Detector | 640×512 / 12 μm VOx Sensor |
| Aperture | F / 1.0 |
| Magnification (×) | 1× |
| Field of View (H×V) | 35° × 30° |
| Recognition Distance (m) | 275 m (Target: 1.7×0.5, P(n)=99%) |
| Image Modes | Highlight / Outline (Adjustable Threshold) |
| Automatic Control | ABC, Auto Shutdown, Auto Standby |
| Bluetooth Remote | Supported (for quick operation) |
| Compass | Integrated Electronic Compass (°) |
| Power Supply | 1×CR123A Battery / Optional Battery Pack |
| Battery Life (22℃) | 3 h (CR123A) / 10 h (Battery Pack) |
| Compatibility | PVS-14 / RNVG / DTNVS / GPNVG |
| Weight (g) | 80 (w/ Battery) / 65 (w/o Battery) |
| Dimensions (mm) | 86 × 65 × 40 |
| Waterproof | 1.5 m for 0.5 Hour |
| Operating Temperature | -40°C ~ +60°C |

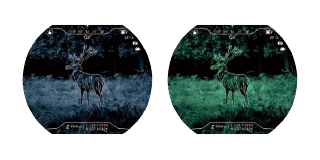

▲ OUTLINE MODE
FEATURES
Ultra-Lightweight Design
World’s lightest dual-sensor fusion device with only 65 g, designed for long-term operational comfort and minimal front weight.
Quick Fusion Imaging
Thermal and image intensifier fusion enhances concealed target detection without calibration or delay.
Smart Control Integration
Supports Bluetooth remote operation, automatic brightness control, and multiple sensors for smart, responsive performance.
TGE-TC
THERMAL & NIGHT VISION FUSION CLIP-ON
