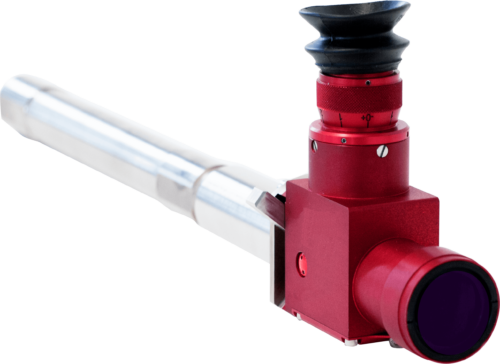

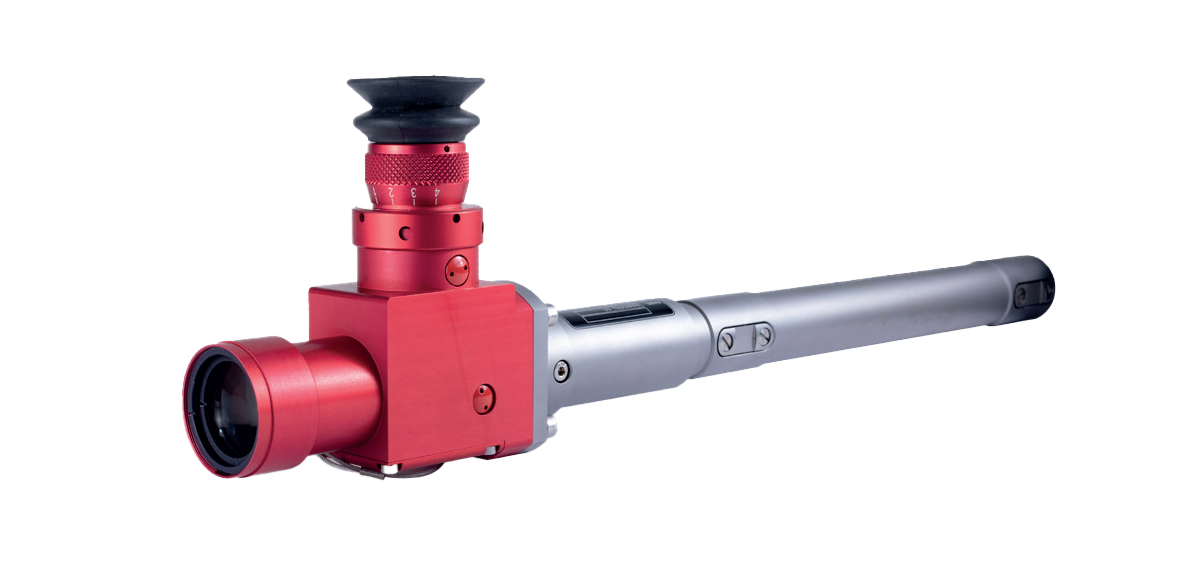

The Muzzle Boresight Device (MBD) is used to check and correct the alignment of the gun with respect to the aiming device. It can be used in every rotational orientation without losing accuracy of the alignment. It offers world’s best alignment precision in a simple operating concept. Having a ruggedized design and offering easy fixation in the gun, the boresight devices are the most accurate and reliable weapon alignment tools found on today’s market.

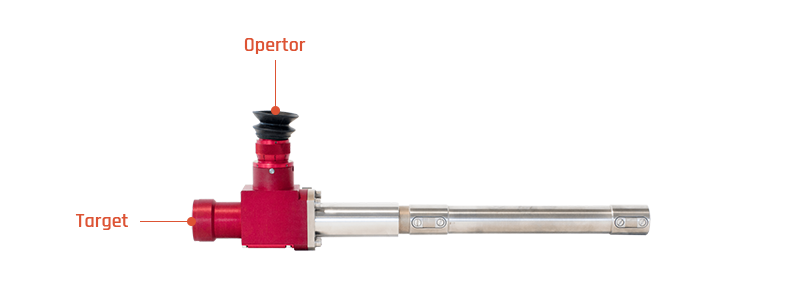

The eyepiece is set perpendicular to the barrel of the gun, with the 90° deflection realized by a mirror or prism.
ADVANTAGE
KEY FEATURES
• Highest alignment precision, highest accuracy
• Ruggedized, simple operating concept
• Operates without power
• Direct sight through integrated reticle
• Unique clamping system, adapting to the gun diameter
• Covers most existing weapons and variants, easily adaptable to new weapon systems
• ITAR free
CHARACTERISTICS
| BORESIGHT 7.62 | BORESIGHT 30 | BORESIGHT 35 | BORESIGHT 40 | BORESIGHT 50 | BORESIGHT 105 | |
| MECHANICAL DIMENSIONS | ||||||
| Telescope, dimension (mm) | 97.5 x 44 x 110 | 120 x 44 x 127 | ||||
| Telescope, weight (kg) | 0.25 | 0.45 | ||||
| Mandrel, dimension (mm) | L247 | L248 | L245 | L248 | L238 | L367 |
| Mandrel, weight (kg) | 0.11 | 1.85 | 4.85 | 2.25 | 3.45 | 6.15 |
| Max. length muzzle brake (mm) | 77 | 66 | 466 | 87 | 190 | 249 |
| Stop plate Ø (mm) | 24 | 34 | 39.5 | 44 | 65 | 63.5 |
| SYSTEM PERFORMANCE | ||||||
| Accuracy (mrad) | 0.2 | 0.02 | ||||
| OPTICAL DATA | ||||||
| Magnification | 8x | 12x | ||||
| Field of View (°) | 5.6 | 3.7 | ||||
| Diopter setting | ±4 | ±4 | ||||
| Focus range | 25m ~ ∞ | 25m ~ ∞ | ||||
| RETICLE | ||||||
| Range (mils) | ± 10 | ± 10 | ||||
| Intervals (mil) | 0.5 | 0.5 | ||||
| Line width (mil) | 0.08 | 0.06 | ||||
| GENERAL DATA | ||||||
| Fixation in gun | Flex hinge mechanism Adapting to the diameter of the gun | Clamping mechanism Adapting to the diameter of the gun | ||||
| Environmental tests (in extracts) | Complies with MIL-STD-810 | Complies with MIL-STD-810 | ||||
| Temperature | -21°C to +62°C | -21°C to +62°C | ||||
