BACK-UP SIGHT provides the crew of armoured vehicles with the ability to engage targets in degraded mode. The non-powered BACK-UP SIGHT is an emergency device and is TRL-9. Available in both Single Field of View (Python) and Dual Field of View (Cobra) models, this non-powered direct sighting device is suitable for new and retrofit programs for armoured vehicles. The BACK-UP SIGHT can be customized to be used with different caliber guns and in a variation of military vehicles.
ADVANTAGE

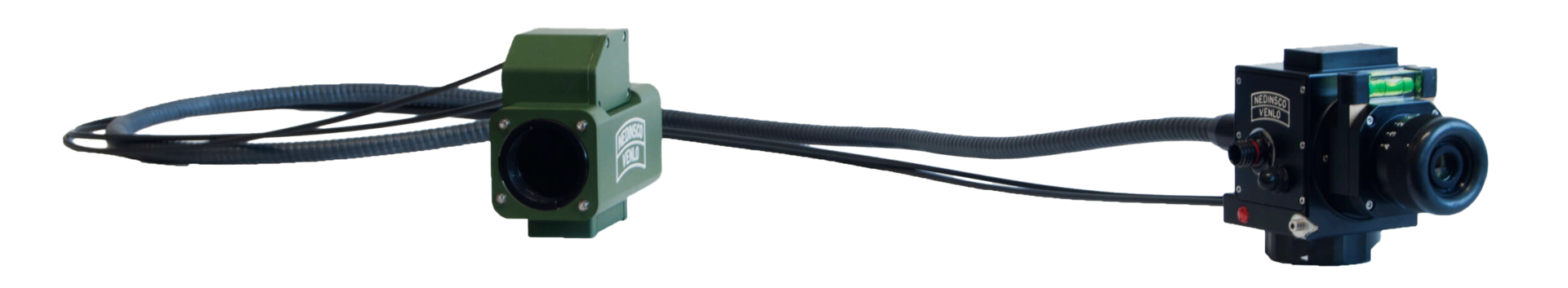

Flexible High-Quality Fiber Optic Sight
DUAL FIELD OF VIEW
NON-POWERED SIGHT
RUGGEDIZED
CHARACTERISTICS
| COBRA LR D-FOV | COBRA MR D-FOV | PYTHON S-FOV | ||
| Housing | ||||
| Ocular Lens (HxWxL) | 119x86x142 mm (4.7x3.4 x 5.6”) | 120x105x172 mm (4.8x4.2x6.8”) | 55x55x178 mm (2.2x2.2x7”) | |
| Objective lens (HxWxL) | 138 x 90 x 180 mm (5.4x3.5x7.1”) | 139x133x164 mm (5.5x5.3x6.5”) | 56x62x173 mm (2.2x2.5x6.9”) | |
| Optical fiber | Length | 0.6 – 4.5 m (24 - 180”) | ||
| Feed through hole armor | Ø40 mm (Ø1.58“) | |||
| Bending radius | R152mm (R6”) | |||
| Weight ¹ | 7.6 kg (16.8 lb) | 7.6 kg (16.8 lb) | 3 kg (6.6 lb) | |
| Optics | ||||
| Minimum field of view (FOV) (HxV) | 2.2x1.6° | 2.95x2.2° | 2.2x1.6° | |
| Maximum field of view (FOV) (HxV) | 21.7x16.3° | 20x15° | N/A | |
| Magnification | 1x, 10x | 1.08x, 7.4x | 10x | |
| Exit pupil diameter | Ø6 mm (Ø0.24”) | |||
| Eye relief | 20 mm (0.79”) | |||
| Diopter | ±4D | |||
| Optical fiber resolution | 670x500 or 500x670 | |||
| Laser filter ² | OD5, 694 & 1064 nm | |||
| Reticle | Adjustment | ±1.4 mil | ±3.8 mil | N/A |
| Shape ² | Cross | |||
| Illumination function ² | Optional red LED | |||
| Environment | ||||
| Operating temperature | -46°C (-50.8F) to +71°C (+159.8F | |||
| Environmental test and evaluation standards | MIL-STD-810F | |||
¹ : Based on a 72” (1.8m) optical fiber
² : Form adjustable and solution supported
